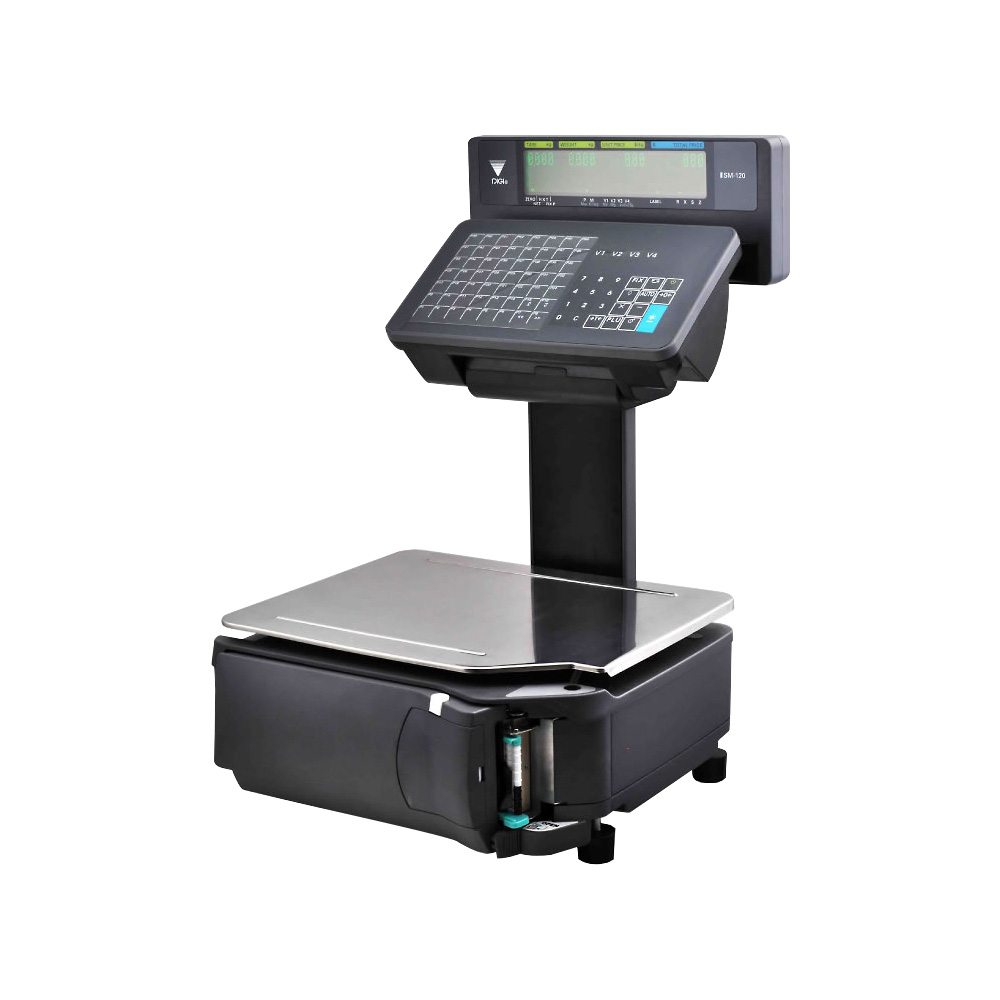

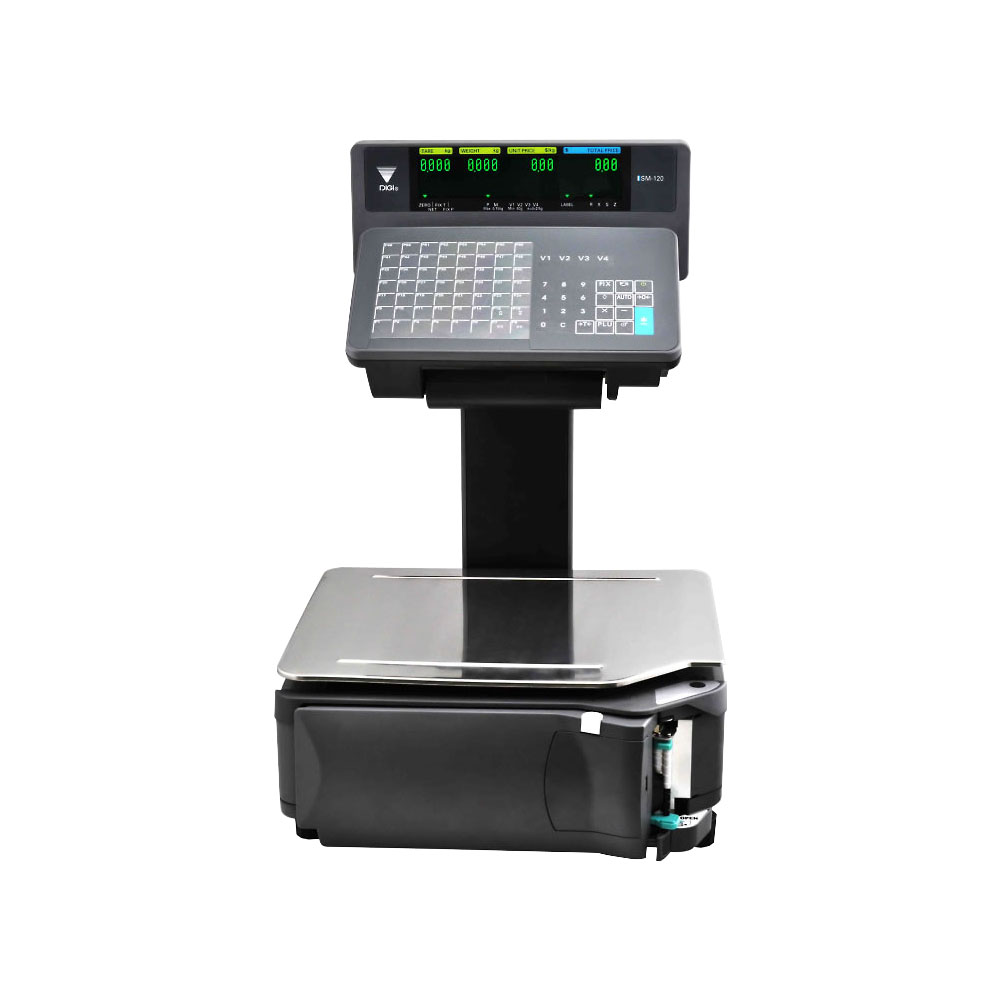

Digi  SM-120LL Digi  SM-120LL
หมวดหมู่สินค้า: Weighing Scale
มีระบบ Auto Resizing ในเครื่องชั่ง
ราคา 36,500.00 บาท

26 ตุลาคม 2560

ผู้ชม 1642 ผู้ชม

E-BROCHURE



Cloud services provided Linerless auto-cutter equipped New mechanical structure for easy maintenance

To create a new business model by an embedded scale

*LL cutter

- Flexible length of label

- Average label saving is 21 to 26% comparing liner label

- Label becomes waterproof Life span of thermal head improved

- Real label and receiptscale in one with one printer

*Cloud service

- Remote installation service

- Remote diagnostic/software upgrade

- Remote application service

*Others

- General functions of other DIGI scales

- SD card slot for large data storage

- Auto update transaction data to the designated ftp server

- DNS protocol

- Support PDF417, GS1 QR, DataMatrix, Gs1 Databar

  Specifications

Capacity :

3kg,6kg/6lb,12kg/12lb,15kg/15lb,30kg/30lb

Display :

202 x 32 pixels FSTN type LCD with back-light Tare Weight: 4 digits. Weight: 5 digits. Unit Price: 6 digits. Total Price: 7 digits. Second Line display: 25 characters

Memory :

2MB(Standard) 32GB(Max)

Power Source :

AC 176V ~ 264V, 47~63Hz.

Operating Temperature :

-10℃ ~ +40 ℃

Operating Humidity :

15% ~ 85% RH.

Power Consumption :

0.15A.

Printer :

Thermal printer with auto cutter Max. Printing Width: 60mm. Paper Width: 62mm (receipt) / 60mm (label). Printing speed: Maximum 110 mm / sec. Life span: 100 million pulses, 100km or more.

Interface :

AC receptacle. Cash drawer control port (drive voltage is 24V). 1 x RS-232C interface. Ethernet
