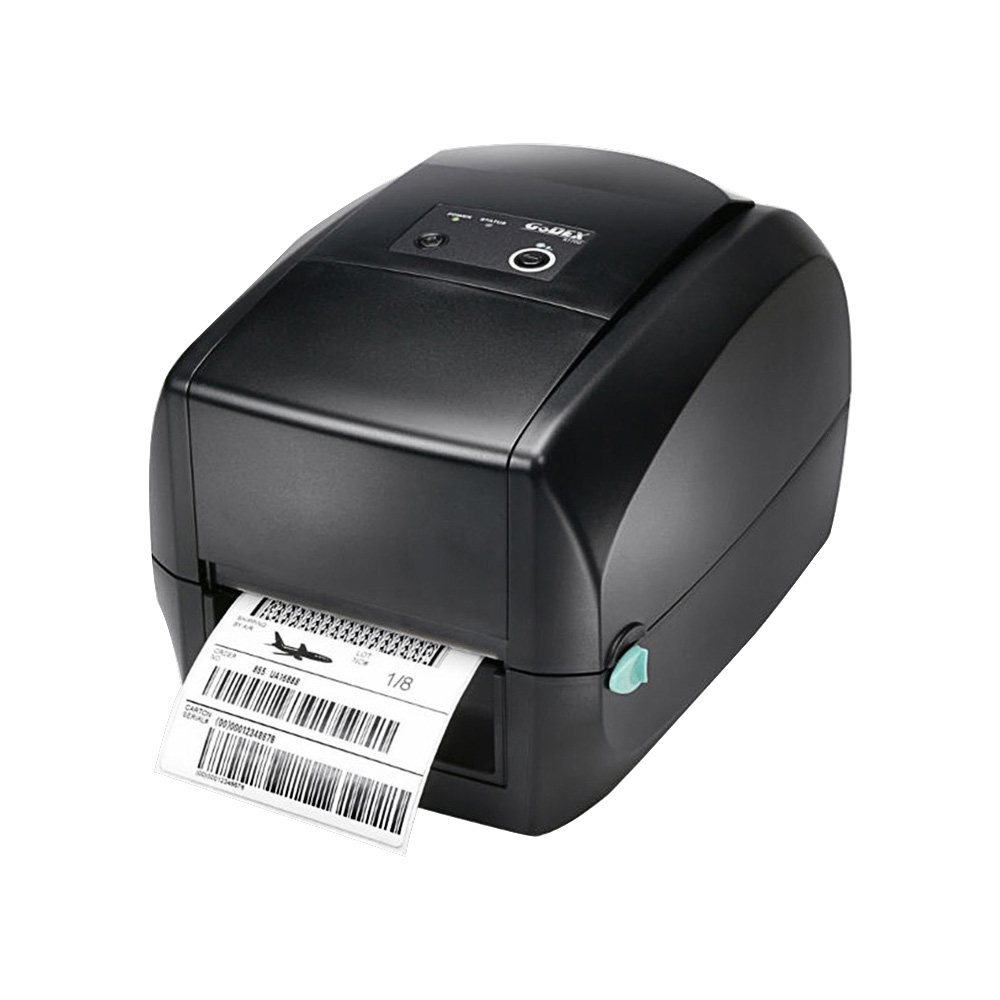

Godex  RT730X
หมวดหมู่สินค้า: Barcode Printer
มีหน้าจอ LCD ช่วยในการทำงาน
ราคา 15,100.00 บาท

17 มีนาคม 2560

ผู้ชม 750 ผู้ชม

E-BROCHURE



Advanced multi-purpose 4” desktop printer for light to medium duty applications. With its powerful and reliable features,RT730x is the best choice for retail and industrial applications Modern clam-shell design makes it simple to load labels Ethernet, USB 2.0, Serial and USB host are standard features adding flexibility and power "Twin-Sensor" technology allows you to use a broad range of labels Rod-less label roll holder for easy loading and smooth feeding Innovative “C” button makes label Calibration simple and fast EZPL, GEPL and GZPL language support Free GoLabel label design software 300 DPI mode



  Specifications



  Specifications

Print Method Thermal Transfer / Direct Thermal
Resolution 300dpi (12 dots/mm)
Print Speed 5IPS (127 mm/s)
Print Width 4.16" (105.7mm)
Print Length Min. 0.16” (4 mm); Max. 30” (762 mm)
Processor 32 bit RISC CPU
Memory 8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type Fixed transmissive sensor and central aligned ,Adjustable reflective sensor (full range)
Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 0.79” (20 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1" & 1.5" (25.4 mm & 38.1 mm)
Ribbon Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max.
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
Printer Language EZPL, GEPL, GZPL auto switch
Software Label design software: GoLabel (for EZPL only)
Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts: 8 times expandable in horizontal and vertical directions
TTF fonts:CG Triumvirate™ (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90°, 180°, 270° rotatable
Barcodes 1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
Unicode UTF8、UTF16BE、UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces USB 2.0 Serial port: RS-232 (DB-9) Ethernet 10/100 Mbps USB Host
Control Panel Two dual color LEDs (Ready & Status) Control key: FEED Power on/off button Calibration button
Real Time Clock Standard
Power Auto Switching 100-240VAC, 50-60Hz
Environment Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals CE(EMC), FCC Class A, CB, CCC, cUL
Dimension Length: 11.0” (280 mm) Height: 7.3” (186 mm) Width: 8.3” (210 mm)
Weight 6 lbs (2.7 Kg) ,excluding consumables
Options Bluetooth module
Guillotine Cutter
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
Note * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
