Posiflex  HS-3512W Posiflex  HS-3512W
หมวดหมู่สินค้า: POS Touch Terminal
All-in-One มี Printer Slip ในตีวเครื่อง พร้อม WIndow OS POS Ready 7
ราคา 38,500.00 บาท

26 ตุลาคม 2560

ผู้ชม 1564 ผู้ชม

E-BROCHURE

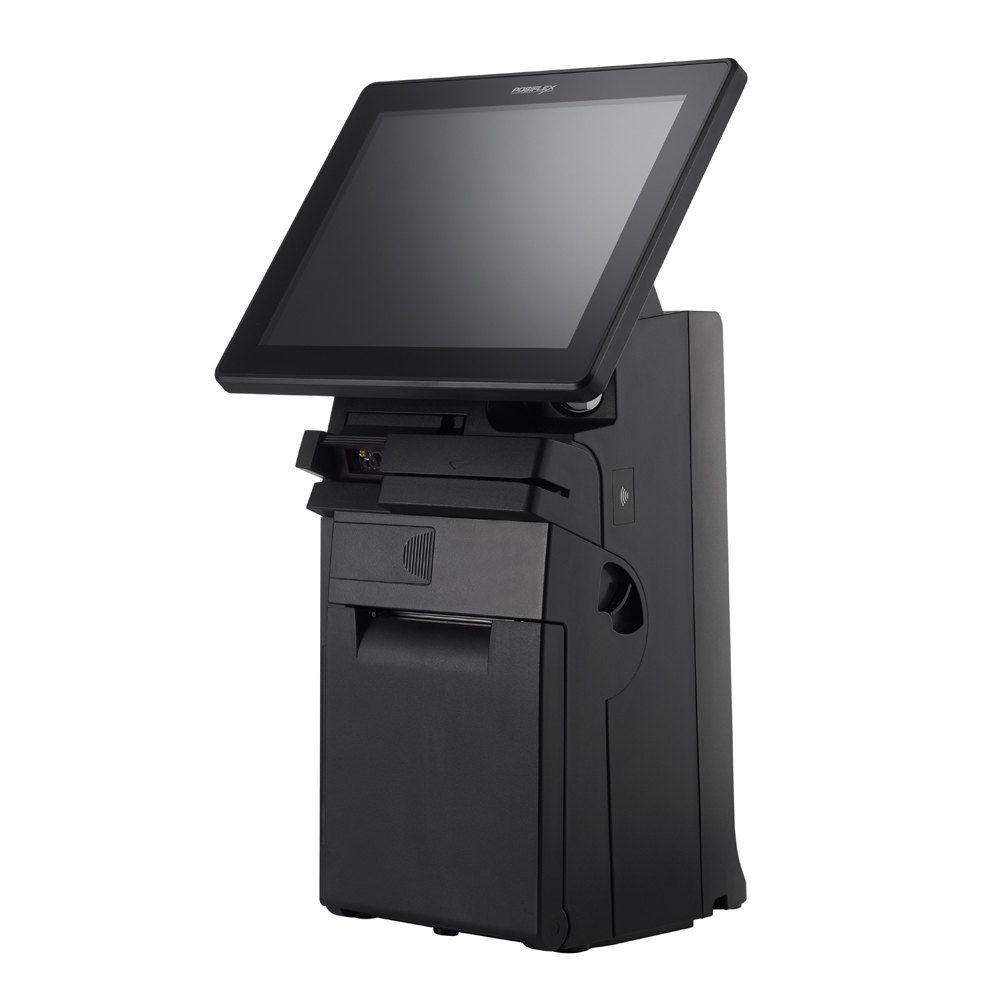

HS-3512W is a whole new generation of high-end all-in-one POS terminal, packing innovativeness and functionalities in compact design with stylish look. It is the perfect fit for retail businesses where space is at premium.



  Feature

Innovative All-in-one Terminal
This compact all-in-one 12” touch POS now comes with a detachable receipt printer for easy maintenance. Add an optional 2D barcode scanner while the printer is on board, making HS-3512W the most well-rounded all-in-one POS terminal in the market.

Integrated Design with Advanced Manageability
HS-3512W Series integrates the most widely used peripherals including 3” thermal printer, MSR, fingerprint sensor, 2D barcode scanner and 2nd customer display to support your daily POS operation. The detachable modularized design allows quick access to the components, enabling fast and easy service and upgrades.

Aesthetics

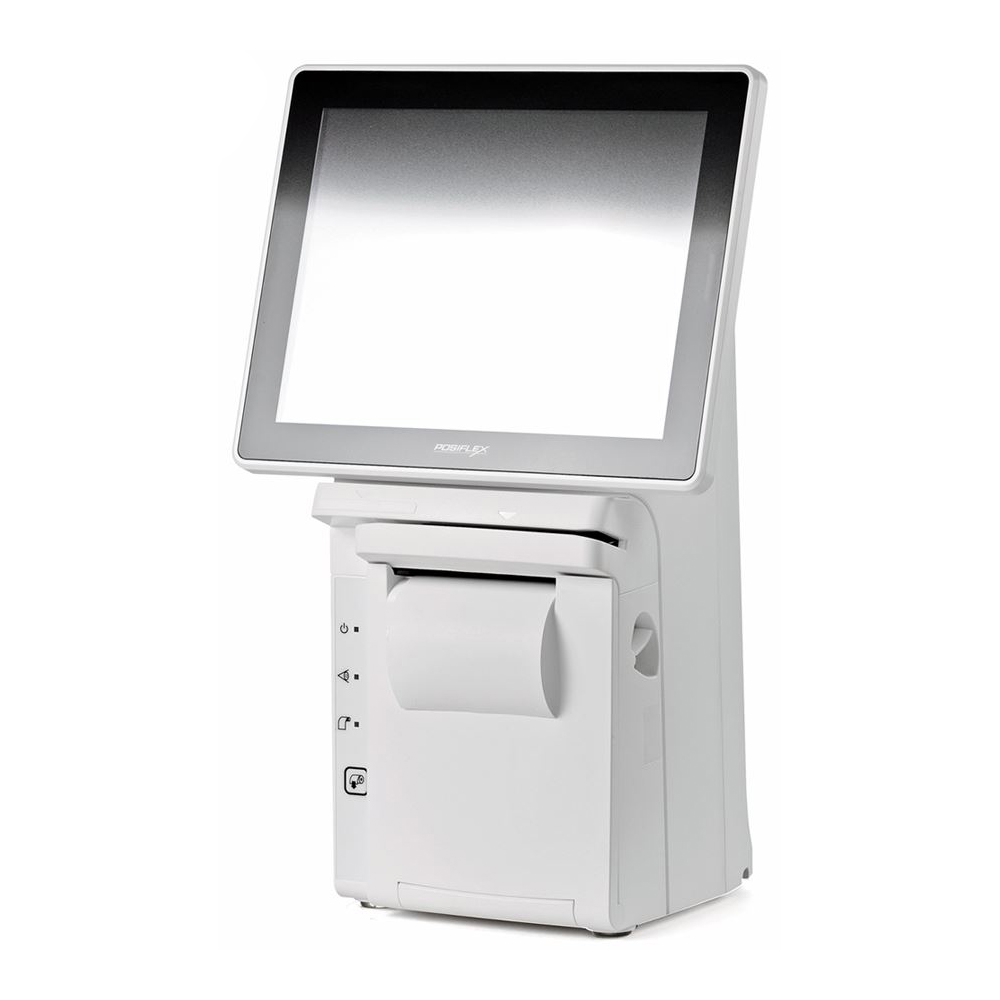

Dressed from head to toe in timeless black or white color, the only trend that never goes out of style, and with stylish touches added throughout, HS-3512W is not just a piece of machinery, it is an elegantly crafted piece of art that looks right at home in any store decoration.



  Specifications

System Configuration
Processor Intel Bay Trail J1900, 4C, 2.00 GHz / 2.42 GHz (Burst)
System Memory DDR3L 1333MHz SO-DIMM x 1, max. 8GB
Storage Device SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only)
RAID N/A
Power Supply 24V / 60W
OS support Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / Windows 10 IoT/ Linux per request
Display & Touch
LCD 12" TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support
I/O & Expansion
Serial Port 3, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port Yes
Standard USB Port  4, 1 x USB 3.0/2.0 + 3 x USB 2.0
Powered USB Port N/A
LAN Port 10 / 100 / 1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
(Printer Driven)

PS/2 Port N/A
UPS Port N/A
Audio Line-out x 1
Internal Expansion Slot mini-PCIe slot x 1
Mini-PCle slot 1
VGA Port VGA x 1, 12V support for Posiflex monitors
Built-in Device
Built-in MSR Optional, 3 track
Built-in Keyboard N/A
Built-in Printer 3” detachable printer for easy maintenance, 200 mm/s, auto-cutter
Built-in FPU Optional, optical type
Built-in WIFI Optional mini-PCIe WIFI
Built-in RFID Reader Optional, support MIFARE Classic 1K and MIFARE Ultralight
Built-in Smartcard Reader N/A
Built-in Handset & Mic N/A
Built-in Webcam N/A
Physical Dimension
Dimension (W x D x H in mm) 297 x 187 x 402
Weight (N. W. in kg) 5.3
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
** The product information and specifications are subject to change without prior notice.
