Posiflex  XT-3915IR Posiflex  XT-3915IR
หมวดหมู่สินค้า: POS Touch Terminal
มีระบบ Fanless ระบายความร้อนระหว่างการทำงาน ราคารวม Window OS POS Ready7
ราคา 39,500.00 บาท

26 ตุลาคม 2560

ผู้ชม 1743 ผู้ชม

E-BROCHURE

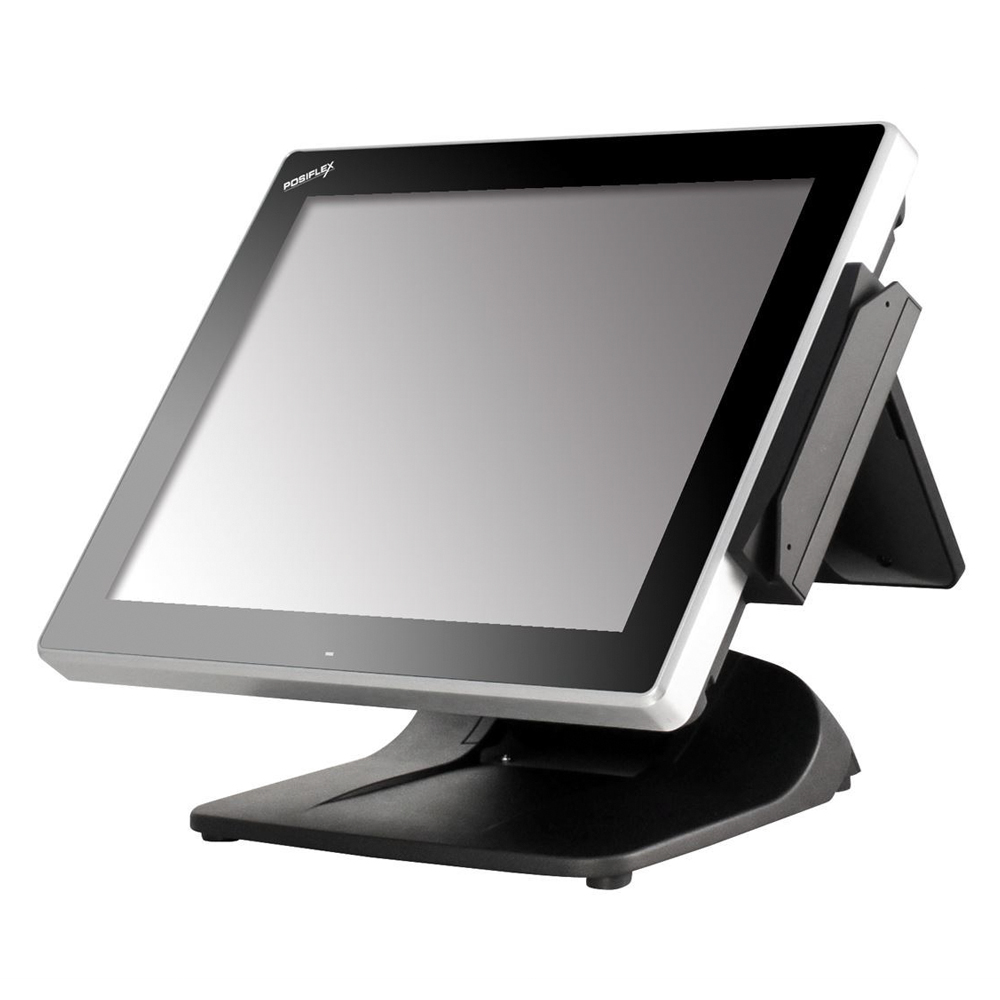

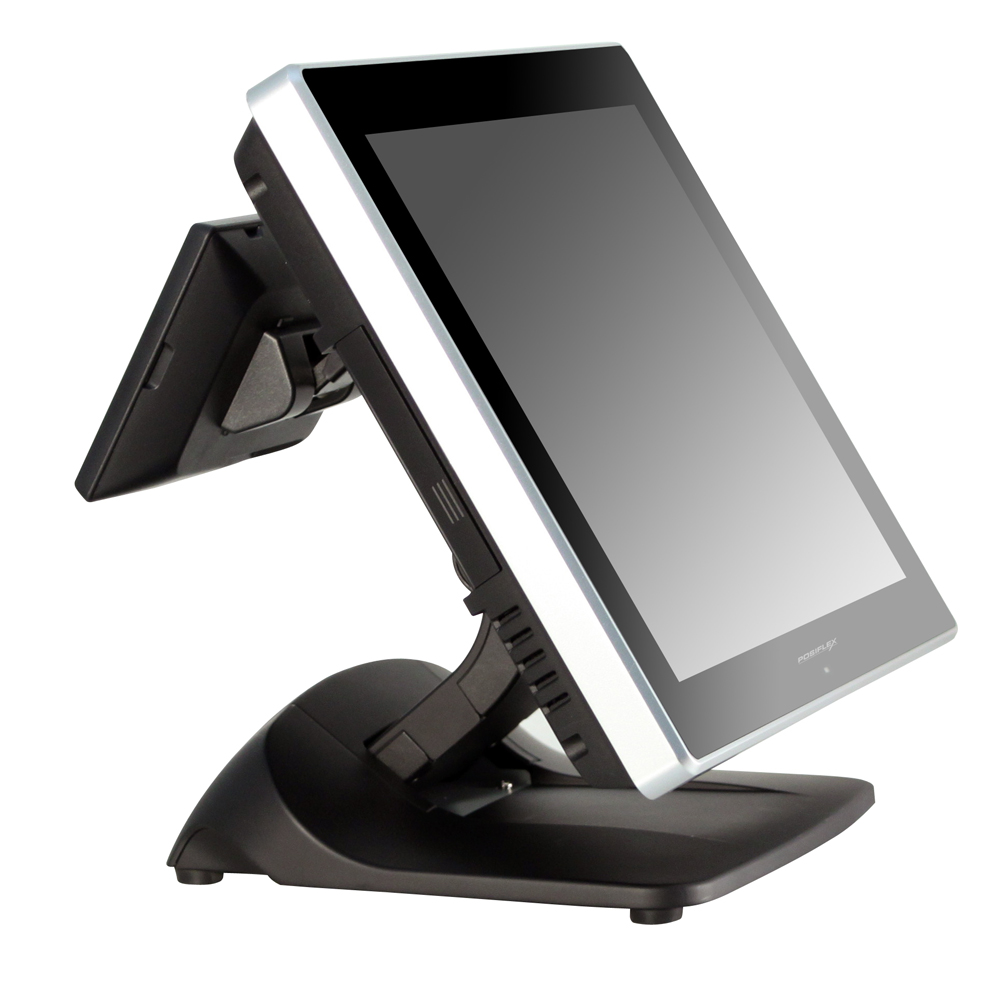

XT-3915IR is the new Bay Trail based fanless IR touch terminals in the XT family. It is the twin version of the new XT-3815 terminal, and is positioned to slot in, performance wise, between XT-3015/3215 running Intel D525 CPU and XT-5315 running Intel Celeron CPU. It represents great cost/performance value.



  Feature

     Intel Bay Trail Celeron CPU, 2GHz up to 2.42GHz, Quad Core, 2MB Cache
     DDR3L SO-DIMM slot x 1, max 8GB
     IR touch
     GEN7E or optional GEN8E foldable base (U.S. Patent #9004436)
     Support Windows 7, POSReady 7, WE 8.1 Industry, DOS



  Specifications

Specification JIVA XT-3915IR
Compare

System Configuration
Processor Intel Bay Trail Quad Core Celeron J1900, 2GHz up to 2.42GHz, 2M Cache
System Memory DDR3L 1333MHz SO-DIMM x 1, max. 8GB
Storage Device SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only) or Optional eMMC module
RAID Function N/A
Power Supply 12V / 60W
OS support Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / DOS/ Linux per request
Display & Touch
LCD Display 15" TFT LCD
LCD Resolution 1024 x 768
Touch Function IR touch
I/O & Expansion
Serial Port 4, 4 on I/O plate (DB9 x 3 + RJ45 x 1), 5V/12V support on all 4 COM ports, optional COM5/COM6
Parallel Port 1, via optional conversion cable
Standard USB Port 7, 1 x USB 3.0/2.0 + 6 x USB 2.0
Powered USB Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10 / 100 / 1000 Mb x 1
VGA Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Keyboard N/A
UPS Port Yes
Audio Internal 2W speaker x 1
Extension Slot mini-PCIe slot x 1
Built-in Device
Built-in MSR N/A
Built-in Keyboard N/A
Built-in Printer N/A
Built-in FPU N/A
Built-in WIFI Optional mini-PCIe WIFI module
Built-in RFID Reader N/A
Built-in Smartcard Reader N/A
Built-in Handset & Mic N/A
Built-in Webcam N/A
Physical Dimension
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.6
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);
0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)

Storage Condition -20°C - 70°C, 10%RH - 90%RH
  ** The product information and specifications are subject to change without prior notice.
